 Diamond Rock saws for Excavators

Diamond Rock saws for Excavators

๐Ÿ“ž 1 225-424-8804
 Diamond Rock saws for Excavators

Diamond Rock saws for Excavators

High-performance diamond rocksaws Wide range to suit any application and excavator from 1 to 60 tonnes

High-performance diamond rocksaws

Wide range to suit any application and excavator from 1 to 60 tonnes

Features

read more...
NEW FEATURE!  <p>Through-hub water distribution for</p><ul>
	<li>improved blade life</li><li>faster cutting</li>
	<li>reduced water consumption</li>
	<li>less mess</ul>

NEW FEATURE!

Through-hub water distribution for

  • improved blade life
  • faster cutting
  • reduced water consumption
  • less mess

Echidna Diamond Rocksaws Product Range

Our extensive range allows us to tailor the rocksaw to suit the job and excavator

High power, high speed and standard machines to fit excavators from 1 to 60 tonnes

Echidna is the only rocksaw manufacturer to design machines truly suited for excavators down to 1.5 tonnes

read more..

High-Speed (HS)


Recommended for demanding applications requiring high productivity, but not large cutting depth
Model Excavator Range Blade Diameter Range Power
tonnes mm kW
D1HS 1 โ€“ 4 400 โ€“ 1000 30
D2HS 3 - 6 500 โ€“ 1200 60
D3HS 5 โ€“ 16 400 โ€“ 1200 120
D4HS 5 โ€“ 20 600 โ€“ 1400 120
D5HS 6 โ€“ 20 400 โ€“ 1800 100

High-Power (HP)


Recommended for demanding applications requiring high productivity, for large diameter blades, or smaller blades on large excavators
Model Excavator Range Blade Diameter Range Power
tonnes mm kW
D3HP 7 โ€“ 13 600 โ€“ 1800 100
D4HP 10 โ€“ 20 800 โ€“ 2200 100
D5HP 16 โ€“ 30 1200 โ€“ 2800 170
D6HP 20 โ€“ 45 1400 โ€“ 3500 170

Standard (S)

Model Excavator Range Blade Diameter Range Power
tonnes mm kW*
D1S 1.7 โ€“ 4.5 600 โ€“ 1000 11
D2S 3.5 โ€“ 5.5 1000 โ€“ 1400 17.5
D3S 6 โ€“ 15 1200 โ€“ 2200 34

Diamond Rocksaw Accessories

Echidna has an unparalleled selection of accessories to increase the utility and productivity of your diamond rocksaw

read more

Accessories

Diamond Rocksaws Features

Reversible Blade Spin 2x

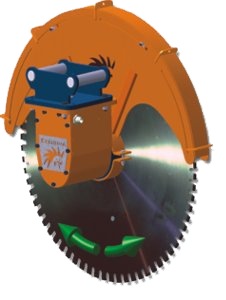

Reversible Blade Spin

For site protection and horizontal cutting.This is an optional feature of all Echidna diamond tipped saws, including high speed and multiple blade models.

It allows the operator to control he direction of spin at will, so that the debris can be directed away from the excavator cabin, or exposed property or persons.

In residential areas, mud in your face will often be the best option.

Rapid automatic blade brake 2x

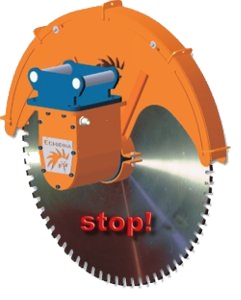

Rapid automatic blade brake

Echidna has designed an hydraulic braking system to stop the blade almost instantaneously when the power to the saw has been removed.

Being integral to the hydraulic circuit of the rock saw, the brake does not contain parts that wear. This means there is no maintenance required, no periodic replacement of parts, and no contamination of the the working parts of the saw with abrasive powder from worn brakes.

The added advantage is that the brake operates automatically, and stays on when power is removed from the saw. The blade is locked at all times unless the saw is in use.

This is an important safety feature designed and developed by Echidna.

Convert to Multiblade saw 2x

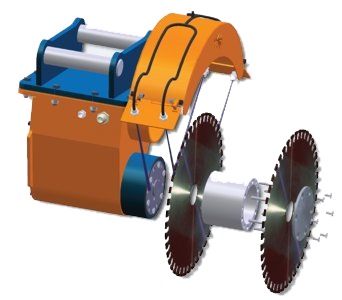

Convert to Multiblade saw

The robust construction of the spindle bearing support or all of the Echidna diamond rock saws allows for the mounting of two or more blades, with an offset spacer for cutting of trenches.

Trenches from 20mm up to 500mm in width can be cut this way.

Multiple blades can be fitted for quarrying finished slices of stone.

For wider trenches, we recommend using our DX2 range of diamond saws, with blade(s) on either side of the saw.

Adjustable shield 2x

Adjustable shield

The protective shield on Echidna Diamond Saws is made up of two independent assemblies.

The inner shield rotates by 360 deg. (ie full circle) around the blade. It is constrcted so that the outer rim sits flush with the outer face of the cutting blade.

The outer guard swivels around the inners shield independently by approx 45deg.

With this arrangement it is possible to open the shield angle to cover most of the blade in situations where surrounding property must be well guarded from the cut debris.

The outer guard provides full protection ofrom both sides of the cuttting blade. The outer guard can be removed when cutting along a boundary wall is required.

Bearing Hub 2x

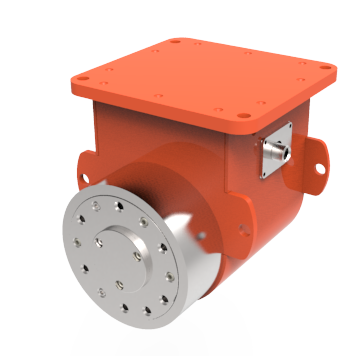

Bearing Hub

The construction of the front bearing hub and its sealing arrangement gives a life time warranty for protection against any dirt entering the bearing space and even allows to use the saw fully submerged in water.

Rotating Head Bracket 2x

Rotating Head Bracket

Rotate the saw by 90 deg. increments without disconnecting from the excavator. This is available for saws up D3 size

Rotating Stand 2x

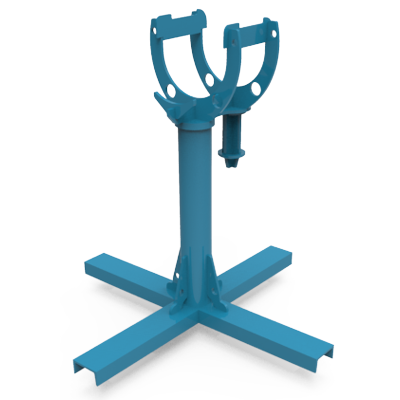

Rotating Stand

The standard stand for all Echidna diamond saws has a rotating cradle. Rotating the cradle allows easy regripping if cutting on alternate sides of the excavator.

Direct Drive - no gearbox 2x

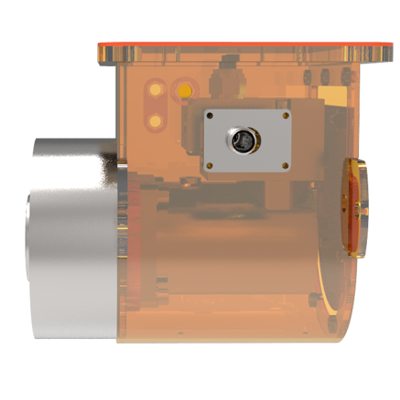

Direct Drive - no gearbox

Standard, high power and high speed diamond rocksaws are directly driven from the hydraulic motor. This means there is no gear box. The advantage is higher efficiency and less maintenance.

Narrow body for trenching 2x

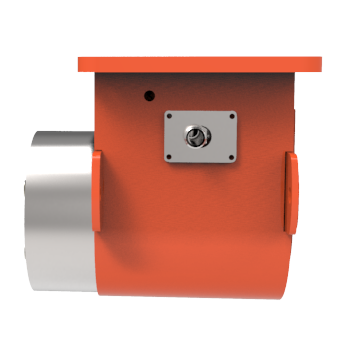

Narrow body for trenching

One of our design criteria is to minimise the width of the saw, to allow it to be inserted into trenches.

Wood Cutting and Stump Grinding 2x

Wood Cutting and Stump Grinding

Our diamond rocksaws are built with full bearing protection, which allows them to be converted to wood cutting saws and stump grinders. The high speed models in particular have enough speed for serious stump grinding.

Diamond Rocksaws Product Range

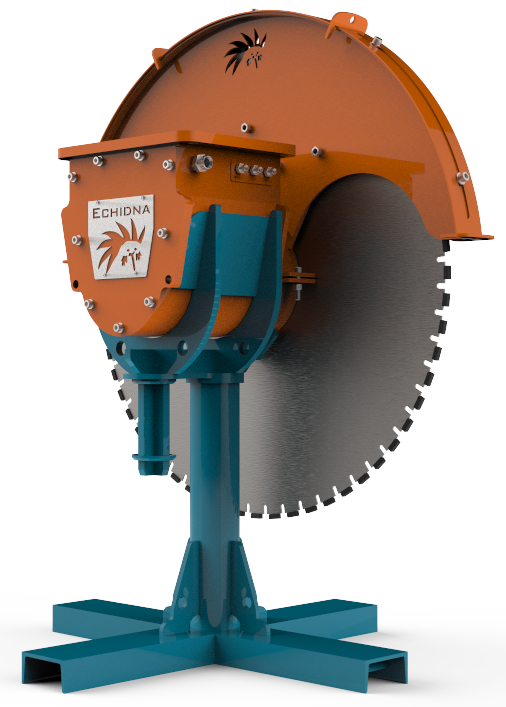

Standard

D0S <br/>0.8 - 2 tonnes 2x

D0S
0.8 - 2 tonnes

Single Direction Diamond Rocksaw
for excavators 0.8 - 2 tonnes
max. Cutting depth: 235mm
D1S <br/>1 - 4 tonnes 2x

D1S
1 - 4 tonnes

Standard Diamond Rocksaw
for excavators 1- 4 tonnes
max. Cutting depth: 325mm
D2S <br/>3 - 5 tonnes 2x

D2S
3 - 5 tonnes

Standard Diamond Rocksaw
for excavators 3 - 6 tonnes
max. Cutting depth: 525mm
D3S  <br/>6 - 15 tonnes 2x

D3S
6 - 15 tonnes

Standard Diamond Rocksaw
for excavators 20 - 60 tonnes
max.Cutting depth: 1550mm

High Speed

D1HS <br/>1 - 4 tonnes 2x

D1HS
1 - 4 tonnes

High Speed Diamond Rocksaw
for excavators 1 - 4 tonnes
D2HS <br/>2 - 8 tonnes 2x

D2HS
2 - 8 tonnes

High Speed Diamond Rocksaw
for excavators 3 - 8 tonnes
D3HS  <br/>5 - 12 tonnes 2x

D3HS
5 - 12 tonnes

High Speed Diamond Rocksaw
for excavators 5- 12 tonnes
D4HS<br/> 10 - 20 tonnes 2x

D4HS
10 - 20 tonnes

High Speed Diamond Rocksaw
for excavators 10 - 20 tonnes
D5HS<br/> 8 โ€“ 22 tonnes 2x

D5HS
8 โ€“ 22 tonnes

High Speed Diamond Rocksaw
for excavators 10 - 20 tonnes

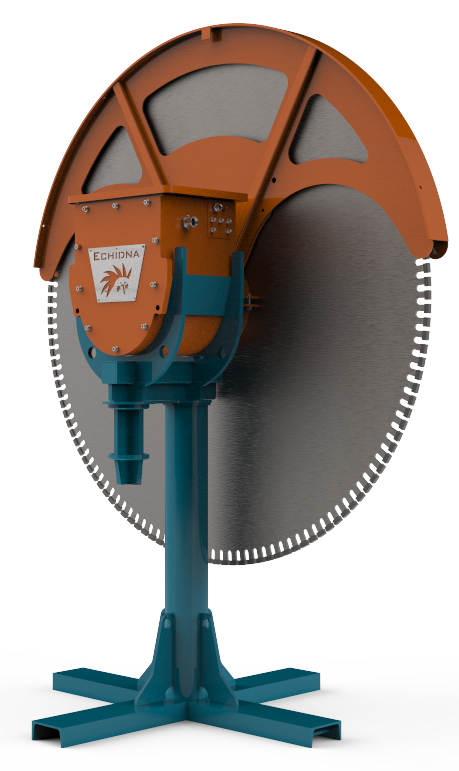

High Powered

D3HP <br/>7 - 16 tonnes 2x

D3HP
7 - 16 tonnes

High Power Diamond Rocksaw
for excavators 7 -16 tonnes
max. Cutting depth :775mm
D4HP<br/> 10 - 20 tonnes 2x

D4HP
10 - 20 tonnes

High Power Diamond Rocksaw
for excavators 7- 25 tonnes
max. Cutting depth :1075mm
D5HP<br/> 16 - 30 tonnes 2x

D5HP
16 - 30 tonnes

High Power Diamond Rocksaw
for excavators 10 - 30 tonnes
max. Cutting depth :1350mm
D6HP<br/> 20 - 45 tonnes 2x

D6HP
20 - 45 tonnes

High Power Diamond Rocksaw
for excavators 20- 70 tonnes
max. Cutting depth: 1550mm
