Tungsten-Carbide Rocksaw

Tungsten-Carbide Rocksaw

Features

Robust design for trenching, quarrying and excavation Easy tooth replacement on site, and low tip speeds for improved safety are just two reasons to choose an Echidna tungsten carbide rock saw

Robust design for trenching, quarrying and excavation

Easy tooth replacement on site, and low tip speeds for improved safety are just two reasons to choose an Echidna tungsten carbide rock saw

Applications

Accessories

Specifications

Saw Designation>> C4 C5 C6

Blade Diameter up to 2,000mm
(80")
2,000-3,000mm
(80 - 120")
2,500-3,500
(100 - 140")
Cutting Depth* 750mm
(30")
1,300mm
(51")
1,550
(61")
Tip Cutting Speed (nominal) 3.8m/s; 60rpm
(8.5 mph)
4m/s; 30rpm
(8.9 mph)
4m/s; 25rpm
(8.9 mph)
Max. Spindle Torque 1,2000Nm
(8,850 ft-lb)
3,0000Nm
(22,000 ft-lb)
4,5000Nm
(33,200 ft-lb)
Mass with Blade** 650kg
(1,500 lb)
2650kg
(5,900 lb)
3,100kg
(6,900 lb)
Oil Pressure 26 MPa
(260 bar, 3,770 psi)
35 MPa
(350 bar, 5,100 psi )
42 MPa
(420 bar, 6,100 psi )
Recommended Platform 12-15 tonne
(26,000 - 33,000 lb) excavator
20-30 tonne
(44,000 - 66,000 lb) excavator

* cutting depth varies depending on blade

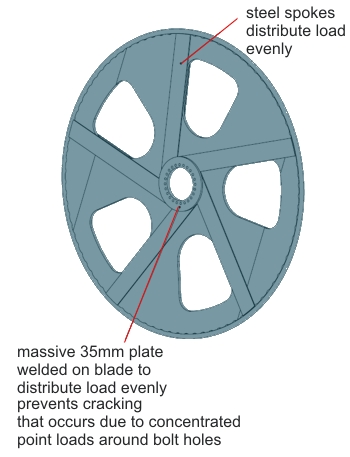

Blade Design

As with all of our machines, our tungsten-carbide blades are engineered using CAD technology to ensure durability and strength.

Using computer stress analysis tools, and years of engineering experience, our blades are designed to outlast the standard blades.

tungsten carbide blade construction tungsten carbide blade construction
